- 3 Megapixel high-performance CMOS
- Analog HD output, up to 3MP resolution
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C)

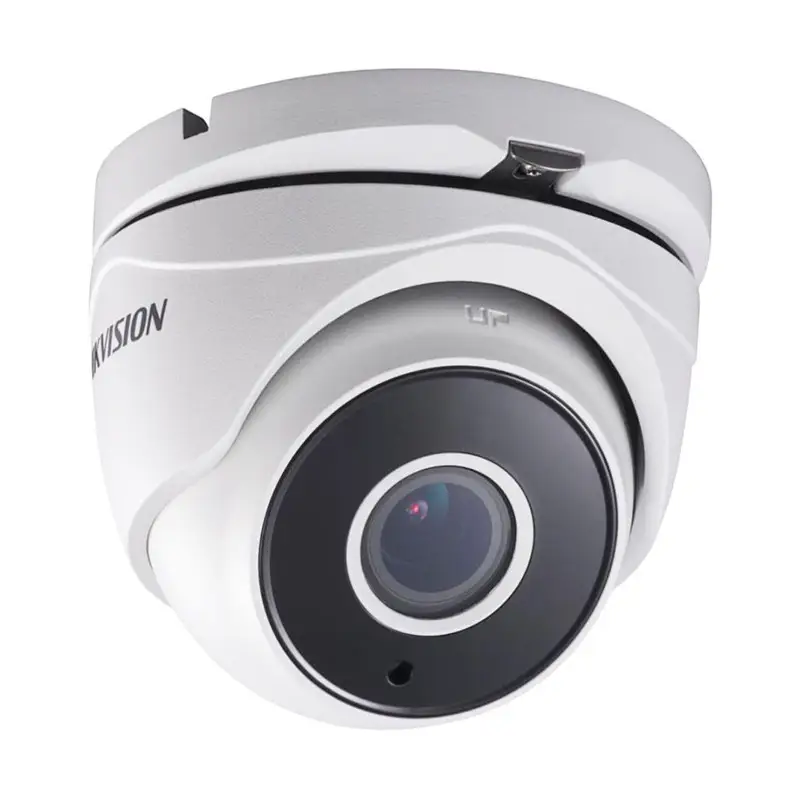

DS-2CE56F1T-ITM EXIR Turret Camera
Description
Camera Specification
| Item | Details |
|---|---|
| Image Sensor | 3MP CMOS Image Sensor |
| Effective Pixels | 2052(H)*1536(V) |
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30)s to 1/50,000s |
| Lens | 2.8mm, 3.6mm, 6mm optional Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm) |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° – 360°; Tilt:0° – 75°; Rotate: 0° – 360° |
| Synchronization | Internal Synchronization |
| Video Frame Rate | 1920×1536@18fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | ＞62dB |
Menu
| Item | Details |
|---|---|
| AGC | Support |
| D/N Mode | Color/BW/SMART |
| White Balance | ATW/ MWB |
| BLC | Support |
| Functions | Digital noise reduction, Mirror, SMART IR |
General Specification
| Item | Details |
|---|---|
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 5W |
| Protection Level | IP66 |
| IR Range | 10 to 20m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 91mm×82.6mm×68.3mm (3.58″×3.25″×2.69″) |
| Weight | Approx. 350g (0.77lb) |
